Molded Grating

    Molded Grating Profile

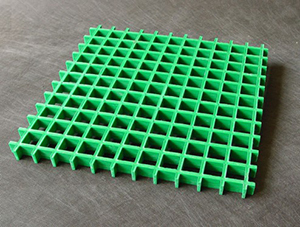

    Molded Grating is made of glass fiber as reinforcing material,resin as a matrix, through the braidind glass fiber and casting resin in mold. Molded Grating mainly includes square lattice grating,rectangular lattice grating and microporous grating three types.The three types can used as stair nosing after cutting and sealing side.

    Features: corrosion-resistant, flame retardant, lightweight, high strength, anti-aging, designability, safety, electrical properties and other features.

    Uses: operating platform, drilling platforms, equipment maintenance platforms, stair treads, floor, trench cover, walkways, pedestrian bridge, equipment safety fence, stairway railings, scaffolding, filler brackets, decorative grille , ventilation grid, etc.

    产品特点

    Product Features

    Lightweight high-strength

    Increasing the use of space

    Fire temperature

    Strong impact resistance

    Hanging strong

    Effectively shorten the construction period

    Energy saving and environmental protection

    Easy installation

    Good decorative effect

    High stability

    Long-life anti-aging

    Economical and practical

    颜色/表面

    Color & Surface

    红色 Red

    橙色 Orange

    黄色 Yellow

    绿色 Green

    群青色 Ultramarine

    蓝色 Blue

    • Meniscus

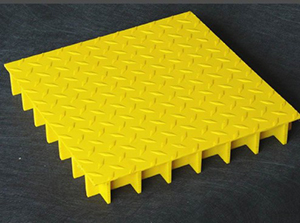

    • Diamond plate cover

    • Sand surface

    • Tablet Cover

    应用范围

    Applications

    格栅尺寸

    Grating Size

    规格(mm)
    H15*38*38
    H25*38*38
    H30*38*38
    H38*38*38
    H40*40*40
    H25*50*50
    H50*50*50
    H30*19*19/38*38
    H14*20*20/40*40
    H22*20*20/40*40
    H25*20*20/40*40
    H30*20*20/40*40
    H38*20*20/40*40
    H40*20*20/40*40
    H50*25*25/50*50
    重量(kg/㎡)
    7
    12.3
    14.6
    19.5
    19.3
    11.5
    23.5
    19.3
    10.5
    14.8
    16.8
    18.3
    23.2
    23.7
    28.5
    面板尺寸(mm)
    1220*3660;616*3660
    1220*3660;1000*4000
    1220*3660
    1220*3660;1000*4000
    1007*4047
    1220*3660
    1220*3660
    1220*3660
    1527*4047
    1527*4047
    1527*4047
    1527*4047
    1527*4047
    1527*4047
    1220*3660
